Unreal Engine Mass Introduction

Introduction

What is Mass?

Mass is a gameplay-focused framework for data-oriented calculations. Is an archetype-based Entity Component System (ECS). It’s designed for managing large amount of entities efficiently. It enables high-performance simulations of large crowd and complex interactions.

Data oriented design

Data-oriented design is a programming optimization strategy focused on making efficient use of the CPU cache. It emphasizes organizing and transforming data based on when and how it will be used, prioritizing data layout over object hierarchies.

OOP

Traditional object-oriented programming (OOP) tends to result in poor data locality. OOP organizes code around data types and their relationships rather than grouping related fields and arrays in memory for efficient access by specific functions.

ECS

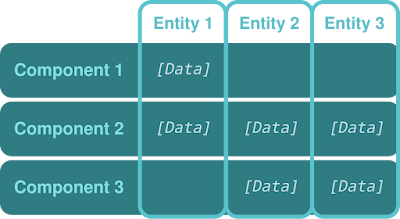

The Entity Component System (ECS) is a software architectural pattern used to represent objects in a game world. Objects are modeled as entities composed of components (data), which are then manipulated by systems.

Mass

Is an archetype-based Entity Component System (ECS).

ECS	Mass
Entity	Entity
Component	Fragment
System	Processor

An entity is a composition of fragments. These fragments get manipulated by processors.

An entity itself is just a unique identifier pointing to fragments. A processor defines a query that filters entities containing specific fragments. For example, a simple movement processor might query entities that have both a transform and velocity fragment, then update their positions by adding velocity to the transform.

Entities

A small unique identifier that references a combination of fragments and tags in memory.

Fragments

Data-only structs that entities can own and processors can query.

Mass Fragment

USTRUCT()
struct FAttributesFragment : public FMassFragment
{
    GENERATED_BODY()

    UPROPERTY(Transient)
    float CurrentHealth = 0.0f;
};

Shared fragments

Fragments that multiple entities can reference. These are often used for configuration.

Always use the UPROPERTY macro

Add the UPROPERTY macro in all properties of a shared fragment

Shared fragment

USTRUCT()
struct FAttributesBaseFragment : public FMassSharedFragment
{
    GENERATED_BODY()

    UPROPERTY(Transient)
    float MaxHealth = 0.0f;
};

Tags

Empty structs used by processors to filter entities based on whether the tag is present.

Mass Tag

USTRUCT()
struct FFrozenTag : public FMassTag
{
    GENERATED_BODY()
};

Subsystems

Mass supports UWorldSubsystems in processors, allowing you to encapsulate functionality to operate on entities.

Subsystem

UCLASS()
class MASSCOLLISION_API UCollisionSubsystem : public UWorldSubsystem
{
    GENERATED_BODY()

public:
    bool HasCollision(const FMassEntityHandle& EntityHandle);

    void AddCollision(const FMassEntityHandle& EntityHandle, const FBoxSphereBounds& Bounds, int32 CollisionLayerIndex);

    void UpdateCollision(const FMassEntityHandle& EntityHandle, const FBoxSphereBounds& NewBounds);

    void RemoveCollision(const FMassEntityHandle& EntityHandle);

private:
	/** Guard to read and write from the collision octree */
	UE_MT_DECLARE_RW_ACCESS_DETECTOR(OctreeAccessDetector);

	/** Stores the entities collisions */
	UE::Geometry::FSparseDynamicOctree3 CollisionOctree;
}

To use this subsystem, you need to define its traits so Mass knows how to access it.

Subsystem traits

template<>
struct TMassExternalSubsystemTraits<UCollisionSubsystem> final
{
    enum
    {
       ThreadSafeRead = true,
       ThreadSafeWrite = true,
       GameThreadOnly = false,
    };
};

Archetypes

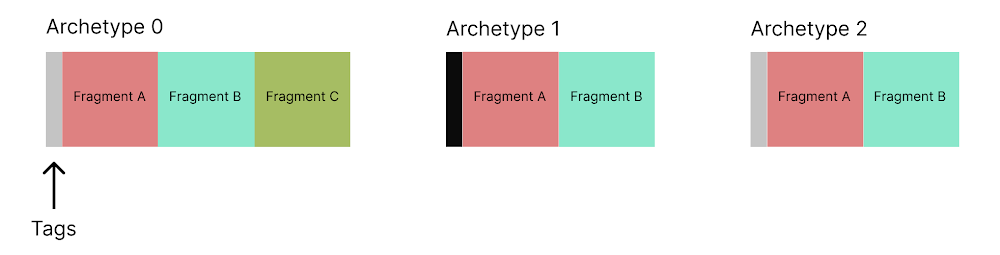

An archetype is a unique combination of fragments and tags.

Each archetype holds a bitset containing tag presence information. Each bit represents whether a tag exists in the archetype.

Chunks

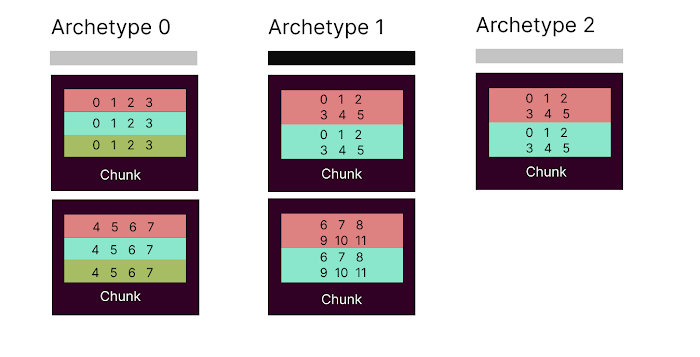

Each archetype contains an array of chunks with fragment data. A chunk stores a subset of entities in a struct-of-arrays-like format This maximizes CPU cache efficiency and allows for a great number of whole-entities to fit in the CPU cache.

Chunk sizes are tuned for next-generation cache sizes.

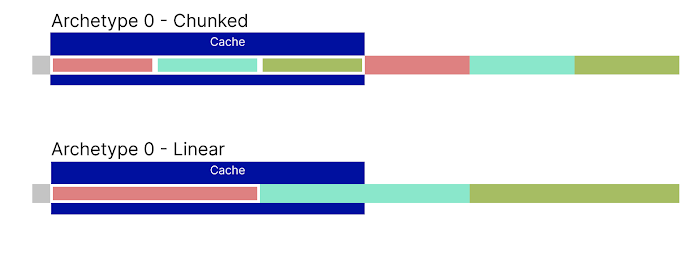

In the image below we can see the difference for Archetype 0 using a chunk versus storing them in a linear way.

The chunked Archetype gets whole-entities in cache, while the Linear Archetype gets all the A Fragments in cache, but cannot fit each fragment of an entity.

Having this chunks we avoid cache misses as we can fit the whole entity in the CPU cache.

Processors

Processors combine user-defined queries with functions that operate on entities.

Processor

UUSTargetSearchProcessor::UUSTargetSearchProcessor()
{
    // Automatically registers the processors with mass
    bAutoRegisterWithProcessingPhases = true;

    // Runs on Server and Standalone but not on Client
    ExecutionFlags = static_cast<int32>(EProcessorExecutionFlags::Server | EProcessorExecutionFlags::Standalone);

    // Always run this processor before movement and avoidance
    ExecutionOrder.ExecuteBefore.Add(UE::Mass::ProcessorGroupNames::Movement);
    ExecutionOrder.ExecuteBefore.Add(UE::Mass::ProcessorGroupNames::Avoidance);

    // Using the built-in behavior group
    ExecutionOrder.ExecuteInGroup = UE::Mass::ProcessorGroupNames::Behavior;

    // This processor can be multithreaded
    bRequiresGameThreadExecution = false;
}

Queries

Queries filter and iterate entities given a series of rules based on Fragment and Tag presence.

Query configuration

void UUSMoveEntitiesProcessor::ConfigureQueries()
{
	// The processor will read and write the velocity, force and transform from the entity
    EntityQuery.AddRequirement<FMassVelocityFragment>(EMassFragmentAccess::ReadWrite);
    EntityQuery.AddRequirement<FMassForceFragment>(EMassFragmentAccess::ReadWrite);
    EntityQuery.AddRequirement<FTransformFragment>(EMassFragmentAccess::ReadWrite);

	// The entity cannot be frozen
    EntityQuery.AddTagRequirement<FUSFrozenTag>(EMassFragmentPresence::None);

	// The processor will read its movement configuration such as its maximum speed
    EntityQuery.AddConstSharedRequirement<FMassMovementParameters>(EMassFragmentPresence::All);

	// The processor will access the UCollissionSubsystem
	EntityQuery.AddSubsystemRequirement<UCollisionSubsystem>(EMassFragmentAccess::ReadWrite);

    EntityQuery.RegisterWithProcessor(*this);
}

When adding a requirement, you must specify access permissions:

• None
• ReadOnly
• ReadWrite

Processors execute queries in their Execute function. The query receives a lambda where fragments are processed.

Processor execution

void UUSMoveEntitiesProcessor::Execute(FMassEntityManager& EntityManager, FMassExecutionContext& Context)
{
	// Starts the query
    EntityQuery.ForEachEntityChunk(EntityManager, Context, [DeltaTime](FMassExecutionContext& Context)
    {
	   // Retrieves the fragments
       const TArrayView<FMassVelocityFragment>& VelocityList = Context.GetMutableFragmentView<FMassVelocityFragment>();
       const TArrayView<FMassForceFragment>& ForceList = Context.GetMutableFragmentView<FMassForceFragment>();
       const TArrayView<FTransformFragment>& TransformList = Context.GetMutableFragmentView<FTransformFragment>();

       const FMassMovementParameters& MoveParams = Context.GetConstSharedFragment<FMassMovementParameters>();
       UCollisionSubsystem* CollisionSubsystem = InContext.GetMutableSubsystem<UCollisionSubsystem>();

       // Loops over every entity in the current chunk
       for (int32 EntityIndex = 0; EntityIndex < Context.GetNumEntities(); ++EntityIndex)
       {
	       FMassVelocityFragment& Velocity = VelocityList[EntityIndex];
	       // ...
	   }
   });

Mutating entities

Use the Defer function from FMassExecutionContext to modify entities safely.

Entity modifications

InContext.Defer().AddFragment<FMyFragment>(EntityHandle);
InContext.Defer().RemoveFragment<FMyFragment>(EntityHandle);

For more advanced mutations, use PushCommand.

Advance modifications

FUSDamageFragment NewDamageFragment;
AddDamageToFragment(NewDamageFragment);
InContext.Defer().PushCommand<FMassCommandAddFragmentInstances>(Collision.OtherEntity, NewDamageFragment);

Observers

Observers are specialized processors that react when a fragment or tag is added or removed.

Observer

UCLASS()
class UUSDamageObserver : public UMassObserverProcessor
{
    GENERATED_BODY()
	UUSDamageObserver()
	{
	    ExecutionFlags = static_cast<int32>(EProcessorExecutionFlags::AllNetModes);
	    ObservedType = FUSDamageFragment::StaticStruct();
	    Operation = EMassObservedOperation::Add;
	}

	(...)

Traits

Traits are C++ classes that declare a set of fragments and tags, used to create new entities.

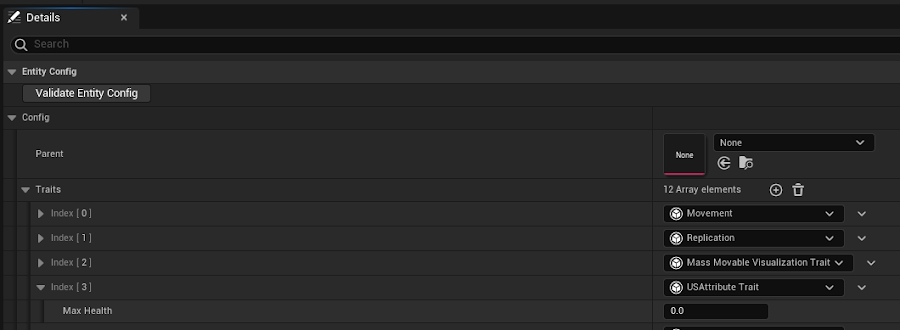

To assign traits to an entity, create a DataAsset inheriting from UMassEntityConfigAsset.

Creating a trait

Create a class inheriting from UMassEntityTraitBase and override BuildTemplate.

Mass Trait Base

UCLASS()
class UUSAttributeTrait: public UMassEntityTraitBase
{
    GENERATED_BODY()

protected:

    virtual void BuildTemplate(FMassEntityTemplateBuildContext& BuildContext, const UWorld& World) const override
    {
	    // Initializes the shared fragment FUSAttributeBaseFragment
	    FUSAttributeBaseFragment AttributeBaseFragment;
	    AttributeBaseFragment.MaxHealth = MaxHealth;

		// Adds the shared fragment to the BuildContext
	    FMassEntityManager& EntityManager = UE::Mass::Utils::GetEntityManagerChecked(World);
	    const FConstSharedStruct& SharedFragment = EntityManager.GetOrCreateConstSharedFragment(AttributeBaseFragment);
	    BuildContext.AddConstSharedFragment(SharedFragment);

		// Adds the regular fragment FUSAttributeFragment to the BuildContext and initializes it
		BuildContext.AddFragment_GetRef<FUSAttributeFragment>().CurrentHealth = MaxHealth;
	}

private:
    UPROPERTY(EditAnywhere)
    float MaxHealth = 0.0f;
};

Sources

• GitHub - Megafunk/MassSample: My understanding of Unreal Engine 5’s experimental ECS plugin with a small sample project.
• Data Oriented Design is not ECS
• https://github.com/SanderMertens/ecs-faq

Continue reading

If you want to continue learning about mass I wrote some blogs about replication.

• Unreal Engine Mass replication
• Unreal Engine Mass Smooth Movement
